Prestige Series/ACCURPRESS

● Adopting SVP (Servo Variable Pumping) hybrid technology.

● which features lower temperature of oil tank, lower running noise, lower consumption (energy saving up to 40%) as well as the advantages like high speed.
● high accuracy and better stability.

● The range of this series is from 40t/1.5m to 250t/5m.

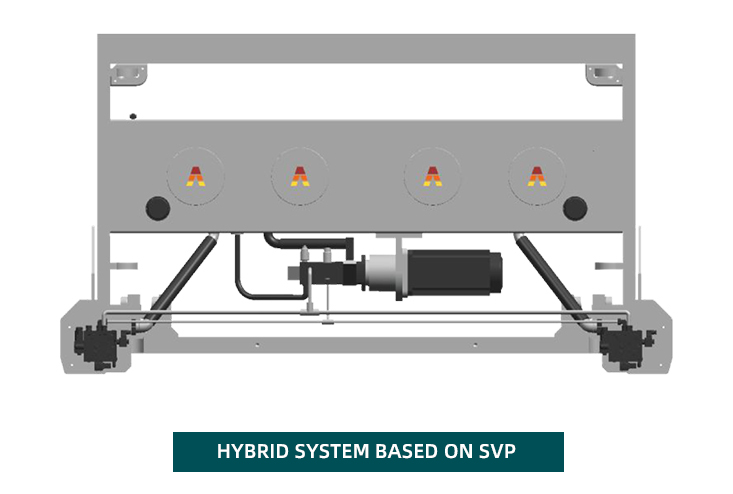

· Driven by the SVP (Servo Variable Pumping) hybrid system, this machine replaces traditional motors with servo motors while retaining reliable proportional valve control. The servo-controlled variable pump technology reduces operating noise, minimizes oil temperature rise, and achieves over 40% energy savings. This design significantly improves machine performance while offering excellent cost-effectiveness.

· The servo motor, integrated with the CNC system, enables analog speed control — aligning motor speed with machine speed to reduce hydraulic overflow losses.

· Increased motor speed enhances machine performance and improves efficiency.

· Lower energy usage helps suppress oil temperature rise.

· Stable oil temperature and viscosity ensure consistent machining precision.

· SVP technology delivers up to 40% energy savings.

· Using a single servo motor instead of a conventional motor, it has fast braking speed and can quickly cut off pressure and flow in emergency situations.

· Low heat to extend life of the hydraulic components and oil

· The noise significantly decreases when the ram is idle, Approach, Bending and returning, making the operation smoother.

· The ram movement speed has been significantly improved, with both approach and return speeds exceeding 180 mm/s

· Improved accuracy of ±0.01 mm

· Equipped with overload protection function
